你的位置 : 产品中心 > LED sheet light

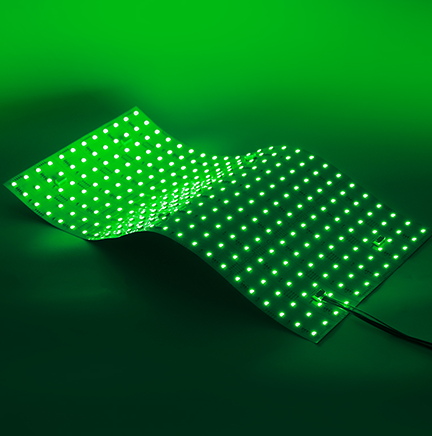

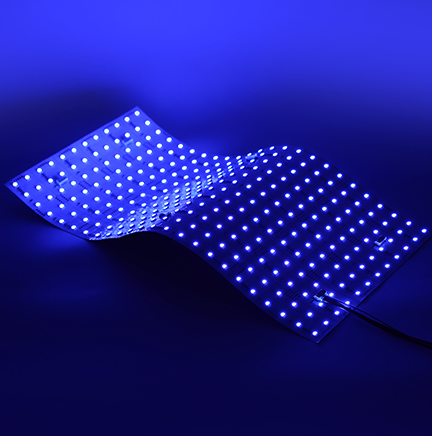

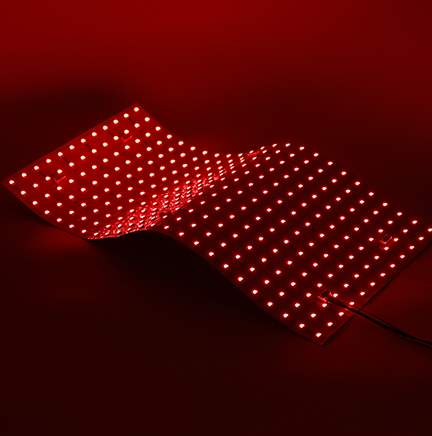

产品名称 : LED sheet light

产品型号 : CK-SMD5050-288-DC24V-RGB-240mm-IP20

质保 : 3

认证: cETLus CE

  • 产品参数
  • 特征
  • 数据下载

    Part NO.

    		                      CK-SMD5050-288-DC24V-RGB-240mm-IP20

    Chip Quantity /pcs

    288chips/pcs

    Dimension

    480*240mm

    PCB

    480*240mm

    Working voltage

    DC 24V

    Wattage /M

    55W/pcs

    CCT Available

    RGB 3in1

    Light Efficiency

    High brightness

    CRI

    N/A

    Wire length

    150mm

    Beam angle

    120 °

    Cutable Length

    120*40mm(12LED)

    Working temperature

    -20~40 °C

    Storage temperature

    -25~60 °C

    IP rank

    IP20

      1. Ideally suitable for advertisements, counter and bar tops, curved surfaces, low clearance applications and situations where exact measurements are not known or likely to change.

      2. With high output 5050 led source, panel flex are specifically engineered to be dimmable, field customizable solution and around curvilinear shapes.

      3. Easily and quickly without soldering. It allows non-site customization which can eliminate custom order lead times. When discrepancies between drawing specs and field measurements or when changes need to be made, on-site customization avoids delays.
